Distributed Electromagnetic Signal Sensing System
Product Introduction
The Distributed Electromagnetic Spectrum Sensing Prototype System is a comprehensive distributed electromagnetic sensing system consisting of a target subsystem, an aerial sensing subsystem, a ground sensing subsystem, a network transmission subsystem, and a display and control subsystem.

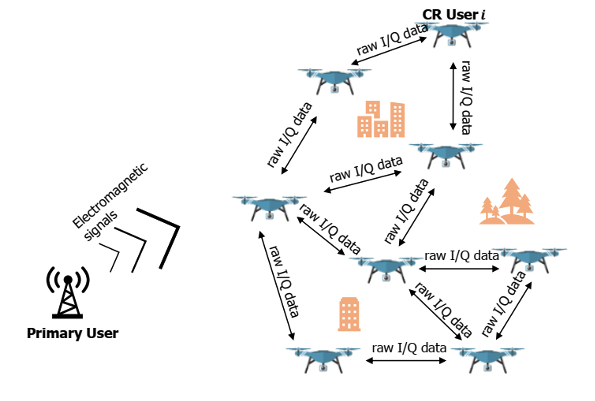

Figure 1: System Deployment Diagram
The Distributed Electromagnetic Spectrum Situational Awareness System integrates detection, identification, positioning, and tracking processes. It fully leverages spatial gains from distributed nodes and explores intrinsic relationships such as target attributes to effectively reduce information loss at various processing stages, achieving a comprehensive acquisition of spatial gain, temporal gain, constraint gain, and coherent processing gain.

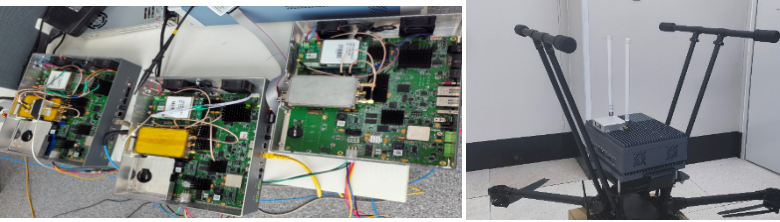

Figure 2: Internal Structure Diagram of the System (Left) and Drone Mounting Diagram (Right)

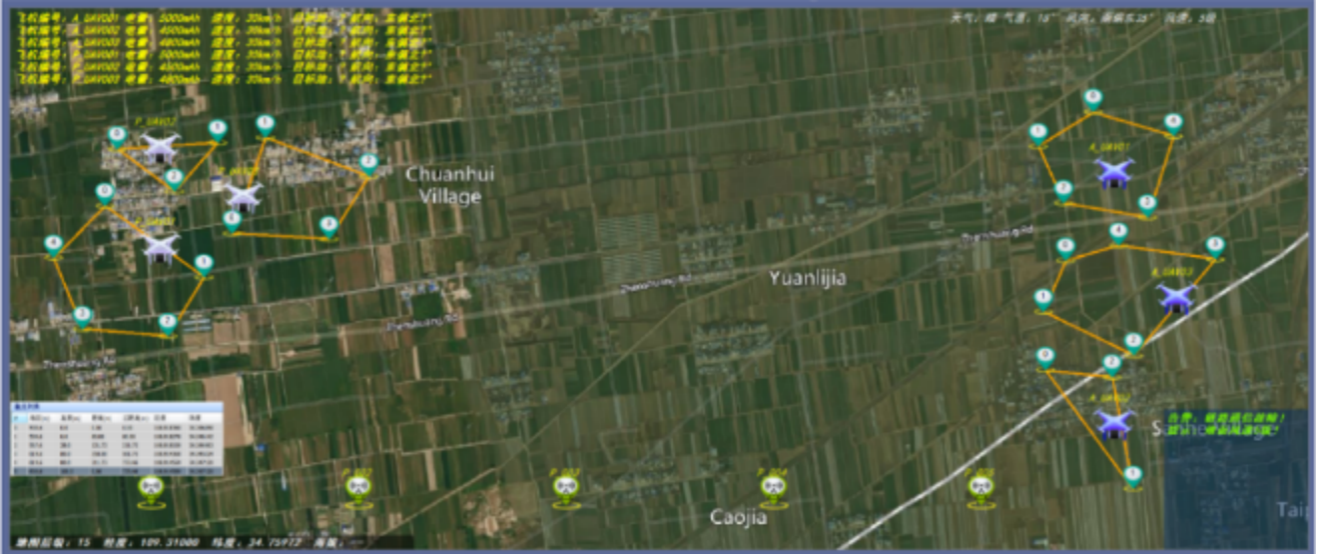

Figure 3: Display and Control Software Central Interface Diagram
Application Scenarios
This product can be used for low-altitude security, urban spectrum environment monitoring, interference localization, and other applications.
